Description
Product Desciption:

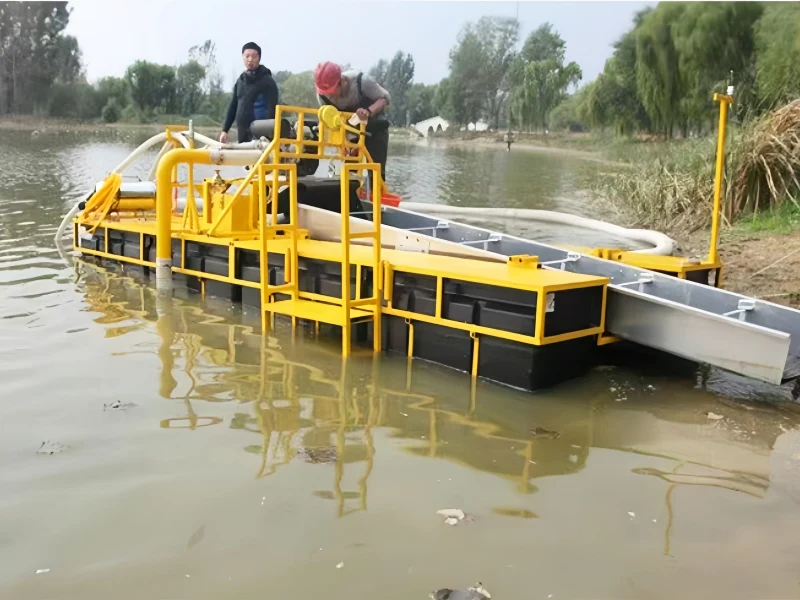

The gold dredge system is powered by a 40-horsepower engine, which directly drives a P1500 water pump with a flow rate of up to 400m³/h, which can provide sufficient water and pressure to generate strong suction. In order to provide sufficient air source for 2 divers, it is equipped with an oil-free air compressor made in the United States K263. The weight of the engine, water pump and compressor configured on this dredge is the lightest, quietest, most fuel-efficient and reliable system in the world today.
The fuel consumption of the engine is about 9 liters/hour. The siphon system is equipped with a super powerful jet tee and dual injection nozzles to achieve maximum suction and reduce the probability of stone blockage. The working depth can reach 12 meters.
The floating body is made of high-strength corrosion-resistant PE material with excellent weather resistance. While recovering gold and diamonds, the length of the sluice box is doubled, and the corresponding floating body is also lengthened.
PRODUCT SPECIFICATION:
| Parameter configuration | Specification |
| Power | 40hp gasoline |
| Sand suction hose | 8 inch*15m |
| Fuel consumption | 9L/h |
| Capacity | 19m³/h |
| Water pump | P1500 |
| Work depth | Max 12m |
| Air compressor | GAST K263 |
| Sluice box size | 4.8m*0.75m |
| Floating body size | 6.34m*2.3m*0.55m |
| Net weight | 855KG |
| Package size (wooden box) | A 20-foot container |
